Converting A LOR1602W To A Single Input Cord

This information applies to the LOR1602W Showtime controller.
The 1602W conversion is not intuitive because the hot jumper terminals are already used by the wires coming from the power switch
If you are converting a PlanetChristmas controller, just install the hot and neutral jumpers and move on.


Click on any picture to open a full size image.
Some pictures show the controller inverted for easier wiring access.
The terms “left” and “right” always assume you are looking at the front of the controller with the cords to the bottom.

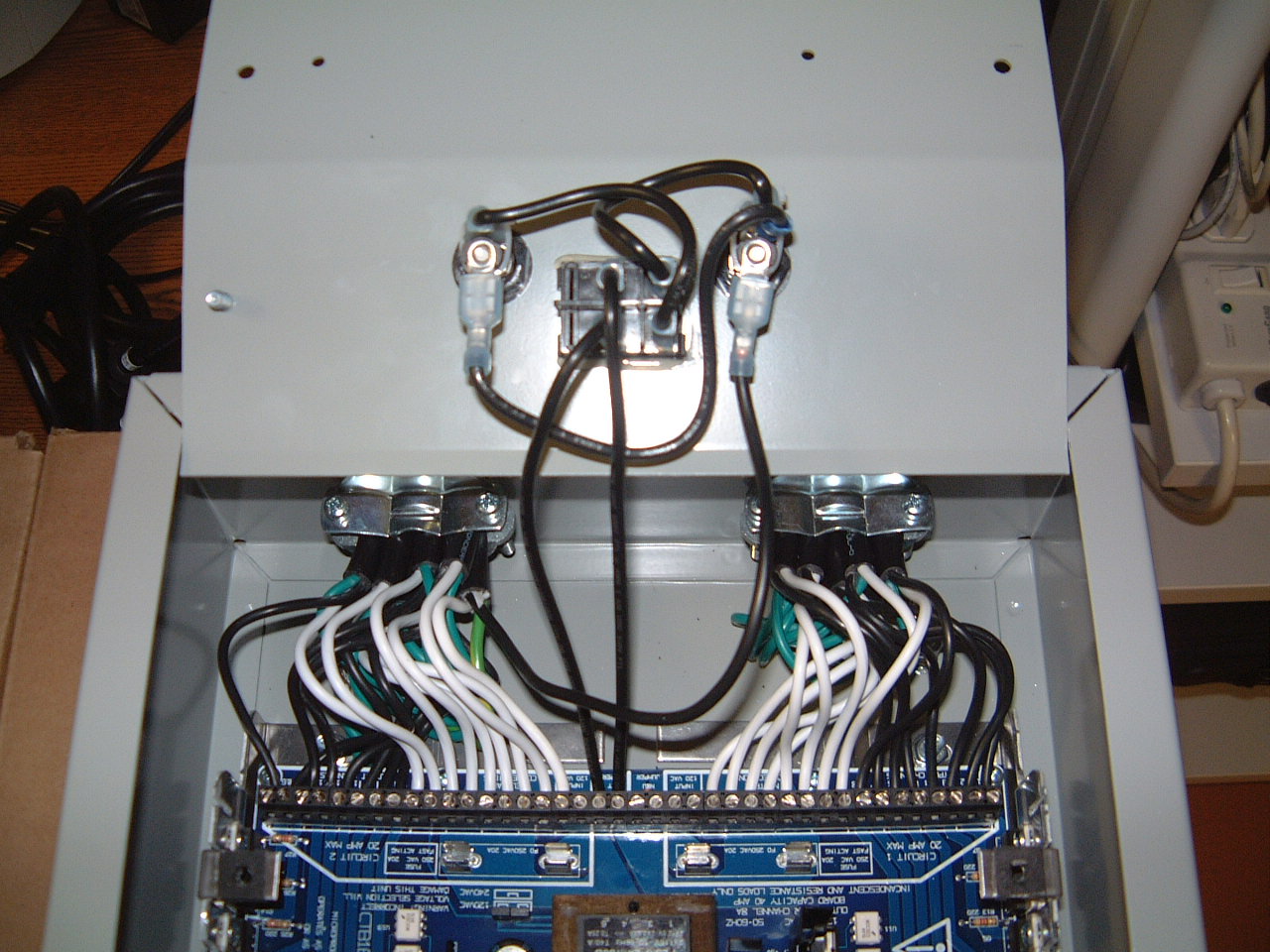

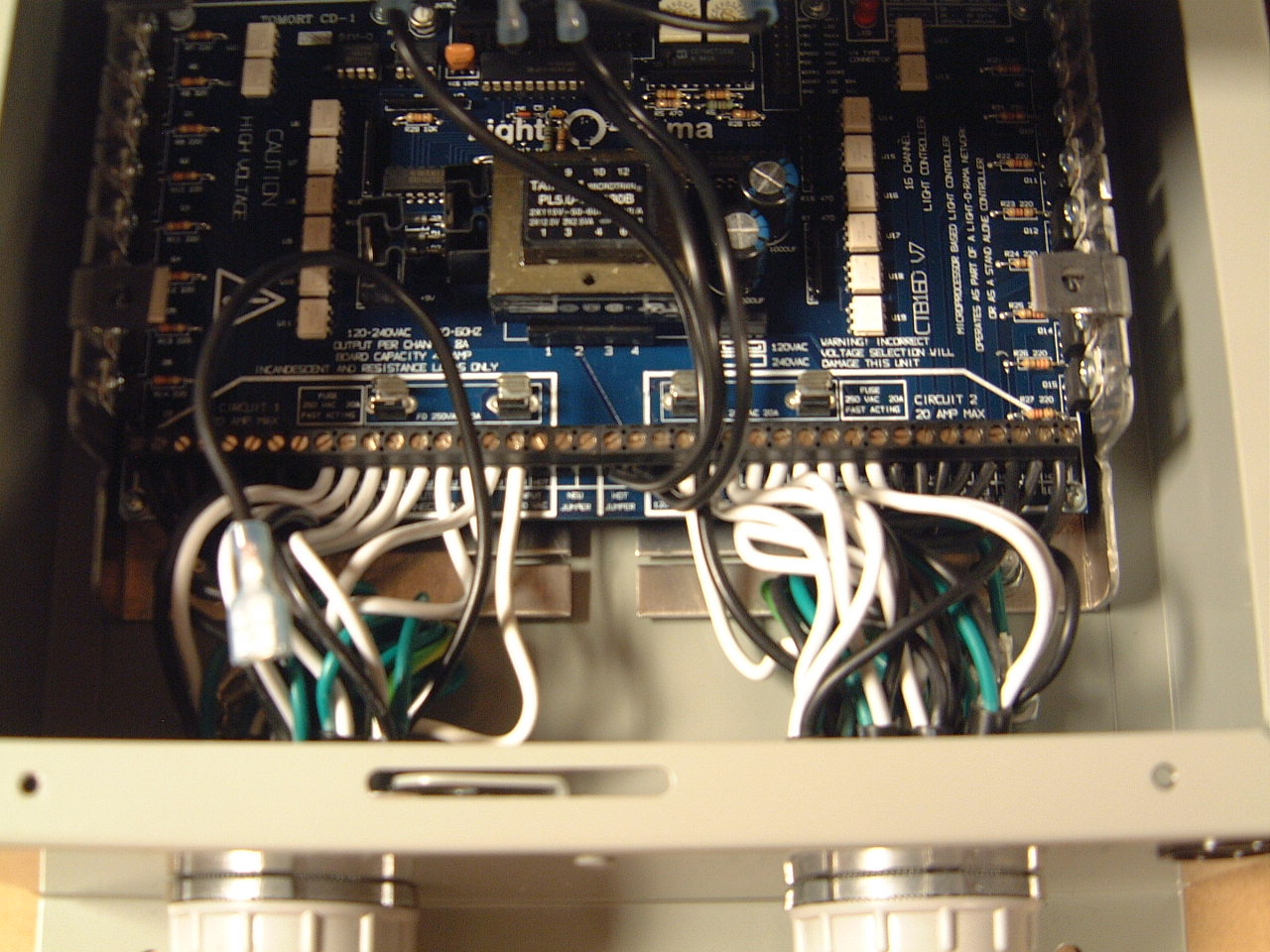

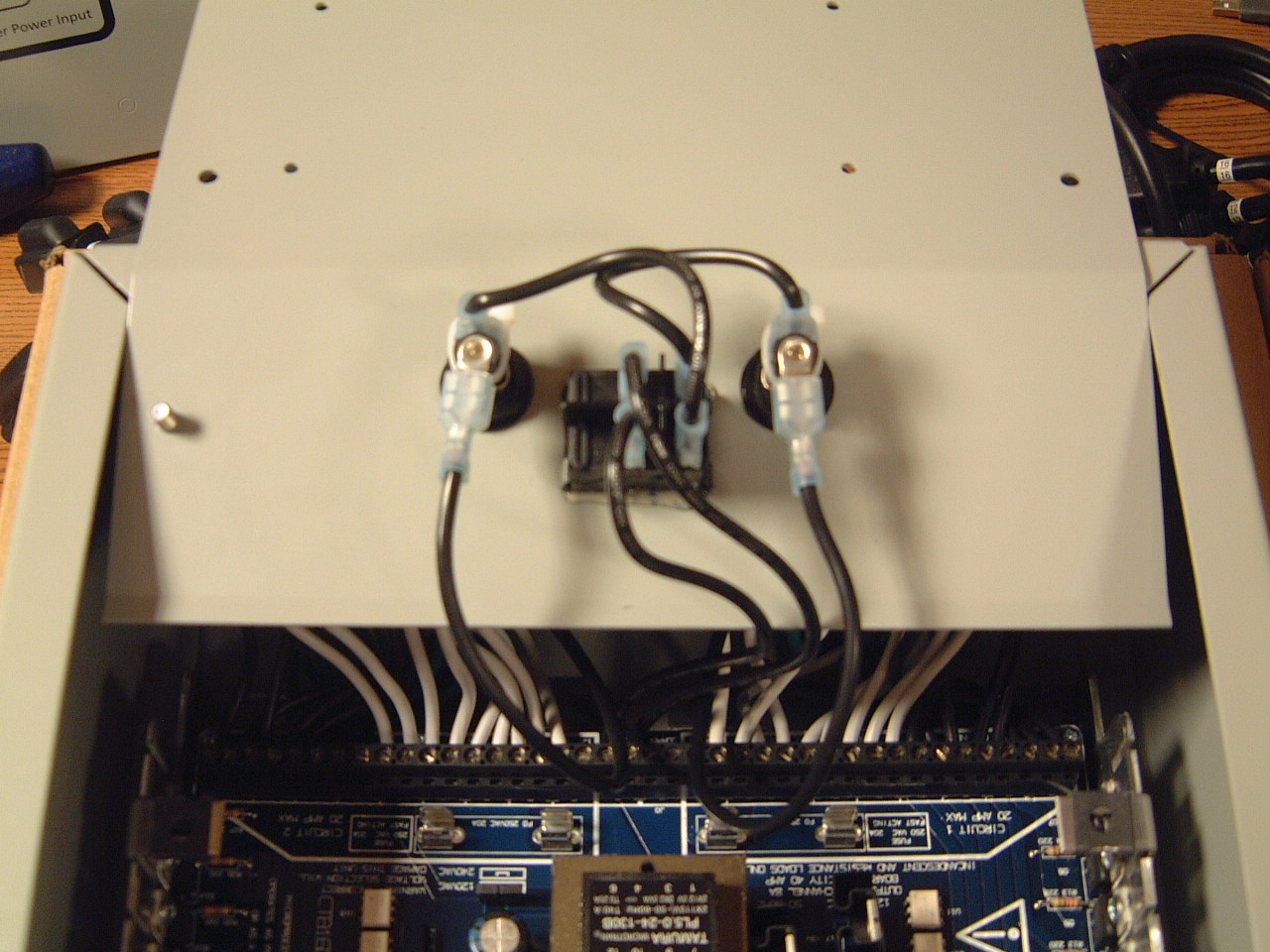

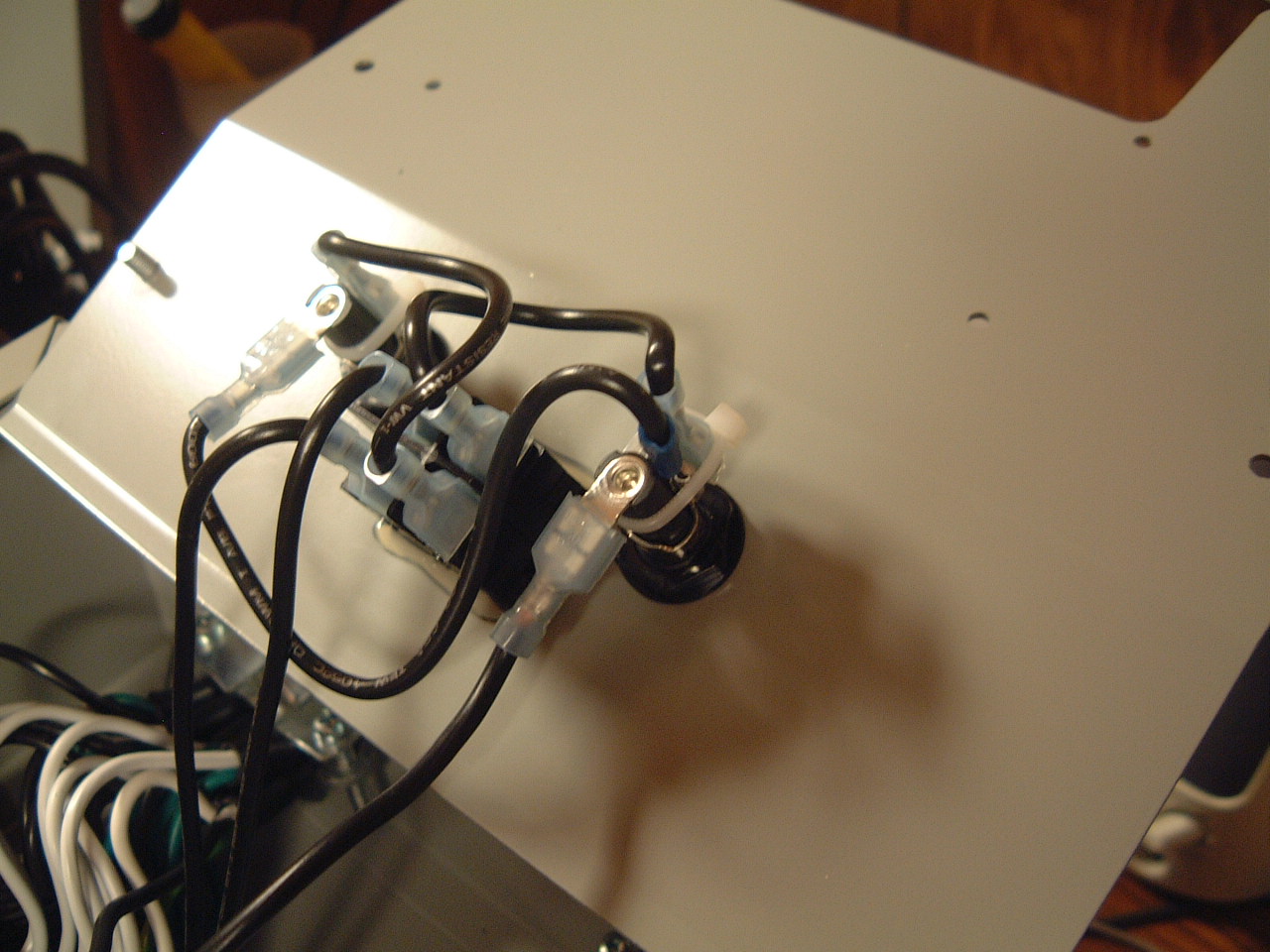

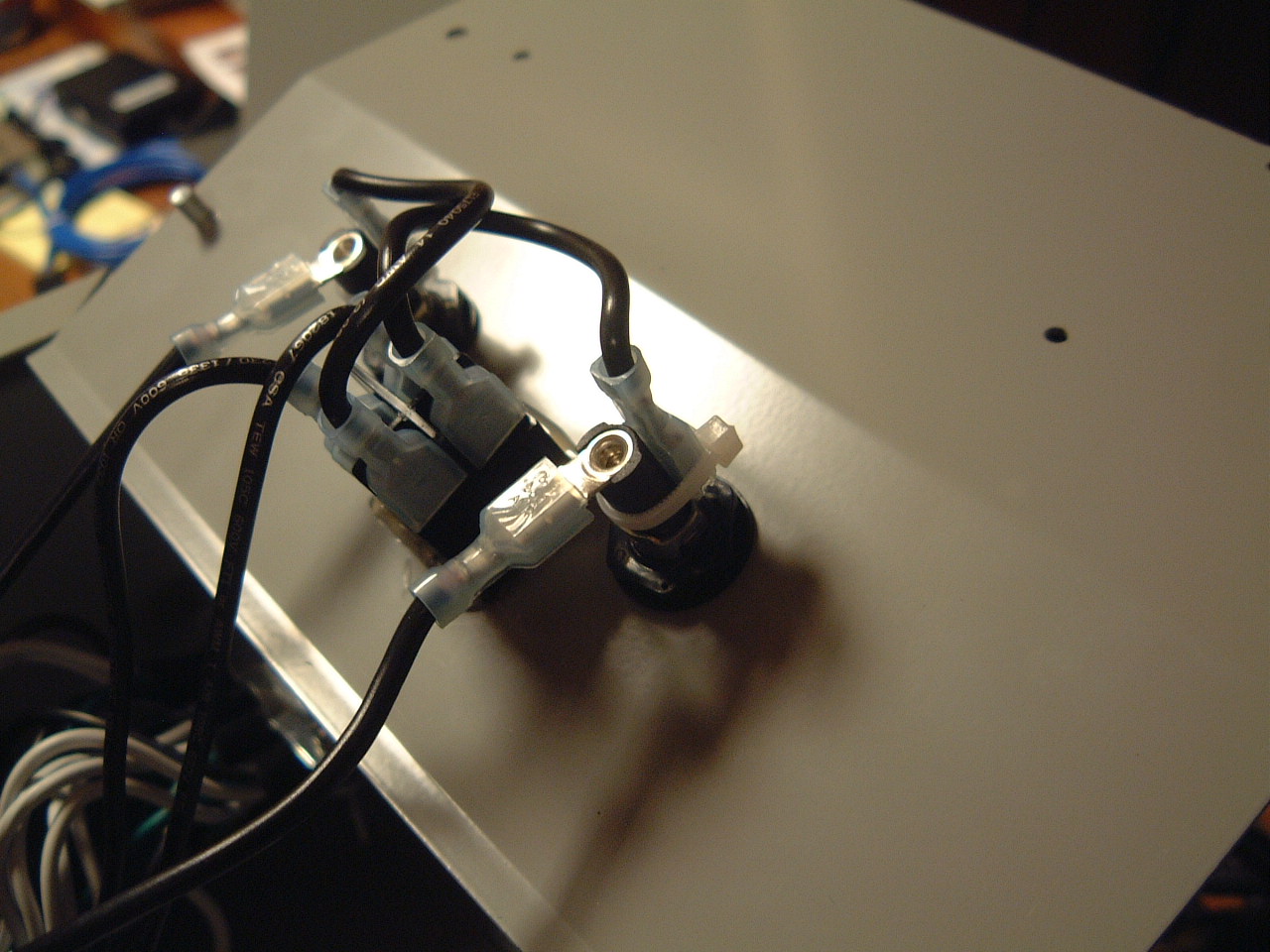

Below are pairs of pictures showing the 1602 wiring (left) and the 1600 wiring (right)









Here's what you need for the conversion:

Insulated 0.25" piggyback quick disconnect for 16-14 gauge wire (blue).
    Amazon link -
http://www.amazon.com/Vinyl-Insulated-Piggyback-Quick-Disconnect/dp/B001IE5TVW
6" piece of stranded insulated black 14 gauge wire
4" white tie wrap (not picture)
3/4" solid non-insulated 14 gauge wire

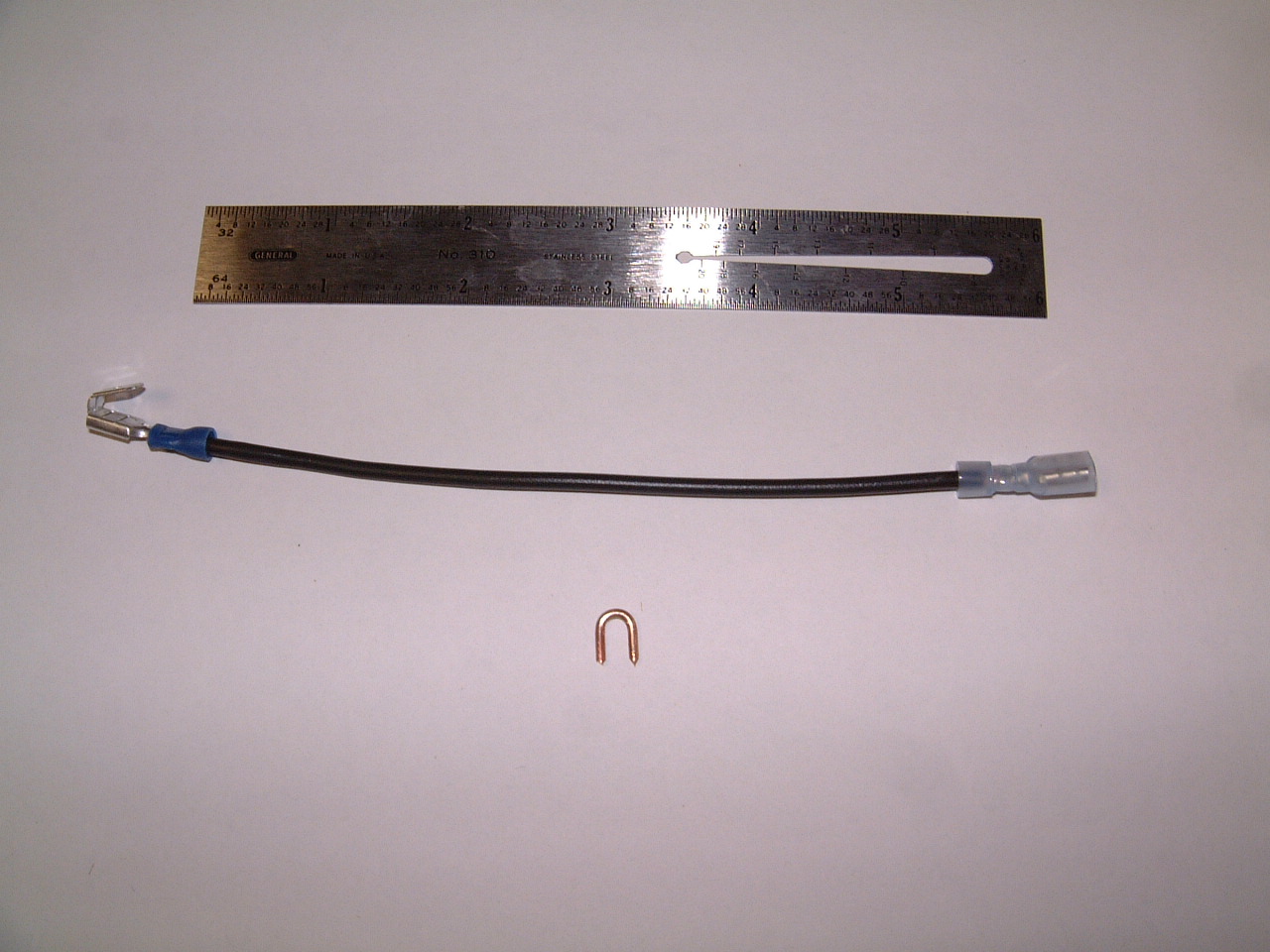

Assemble the new jumper

Remove the cover plate

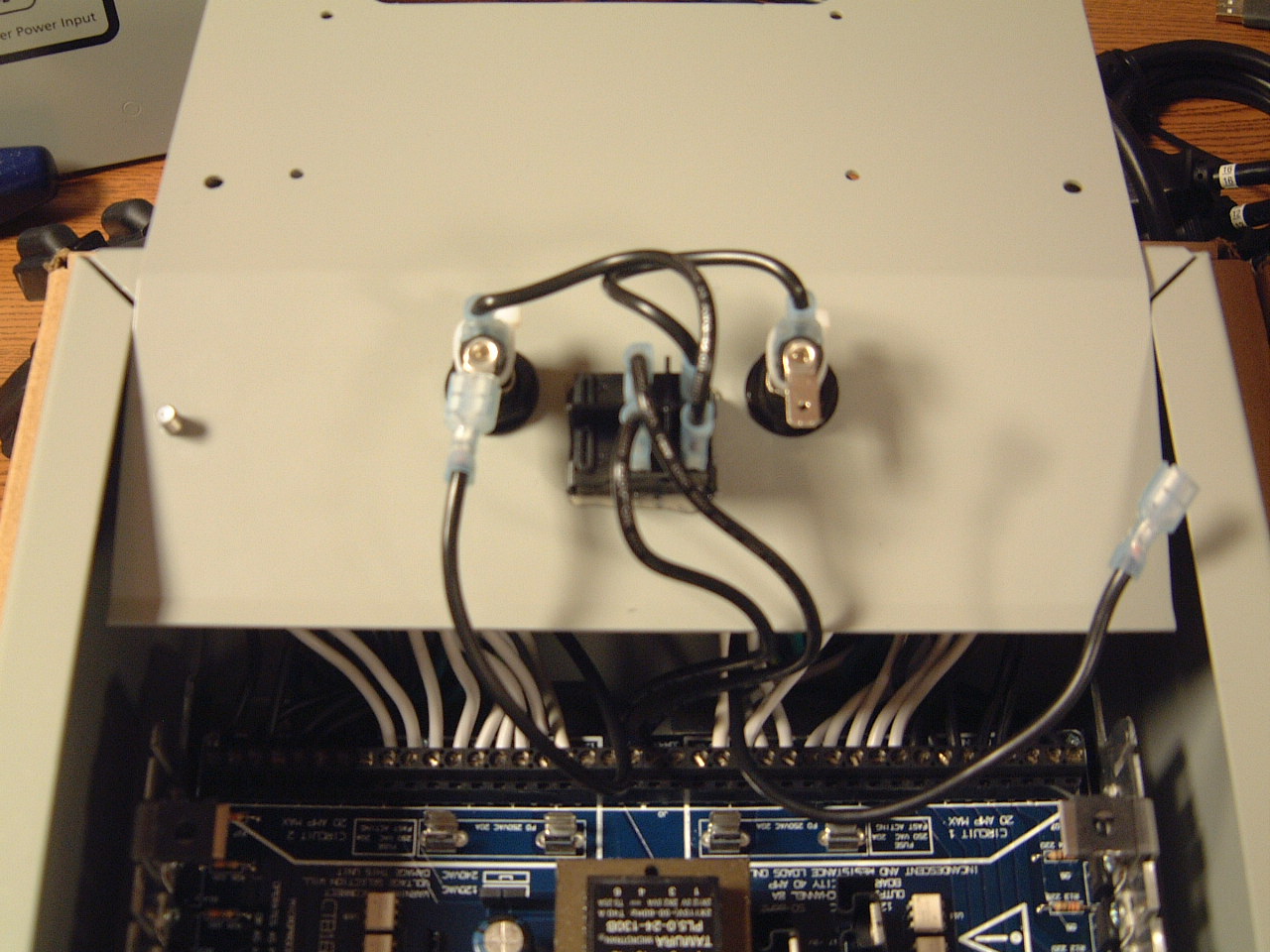

Disconnect the hot input wire (black) from the left input cord from the input of the left fuse

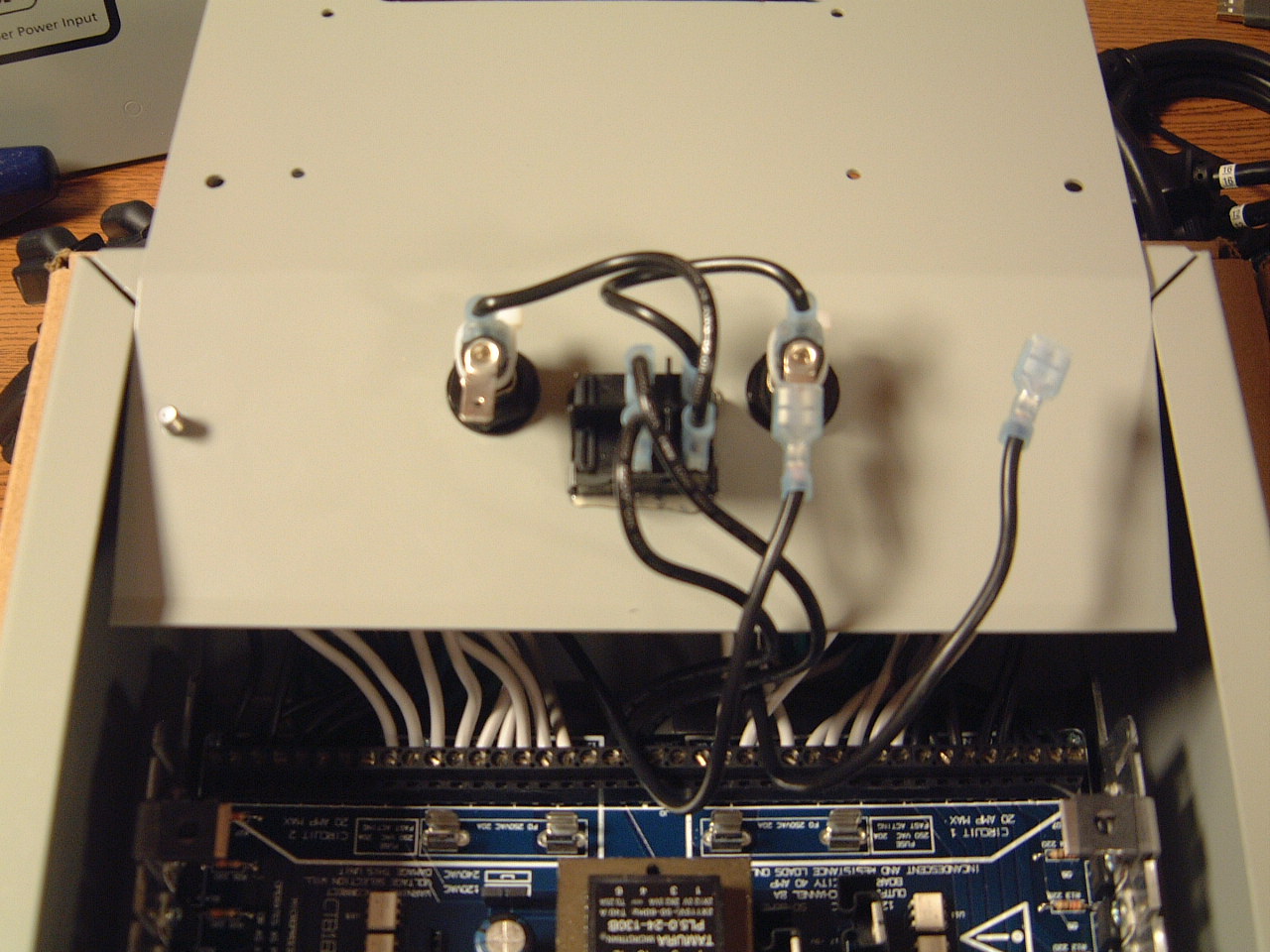

Move the hot wire (black) from the right input cord to the input of the left fuse

Temporarily disconnect the existing jumper from the output of the left fuse

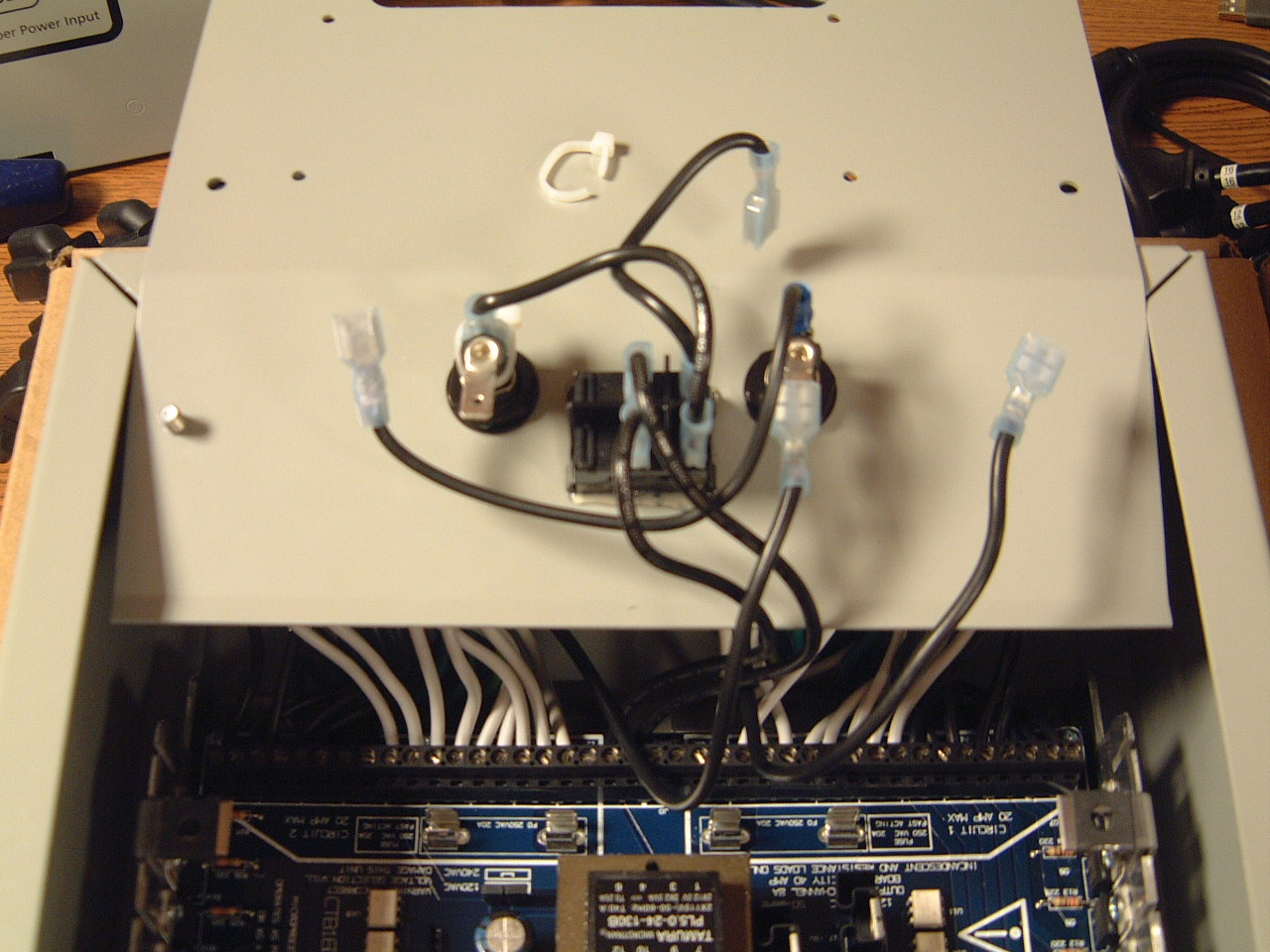

Connect the piggyback terminal from the new jumper to the output of the left fuse

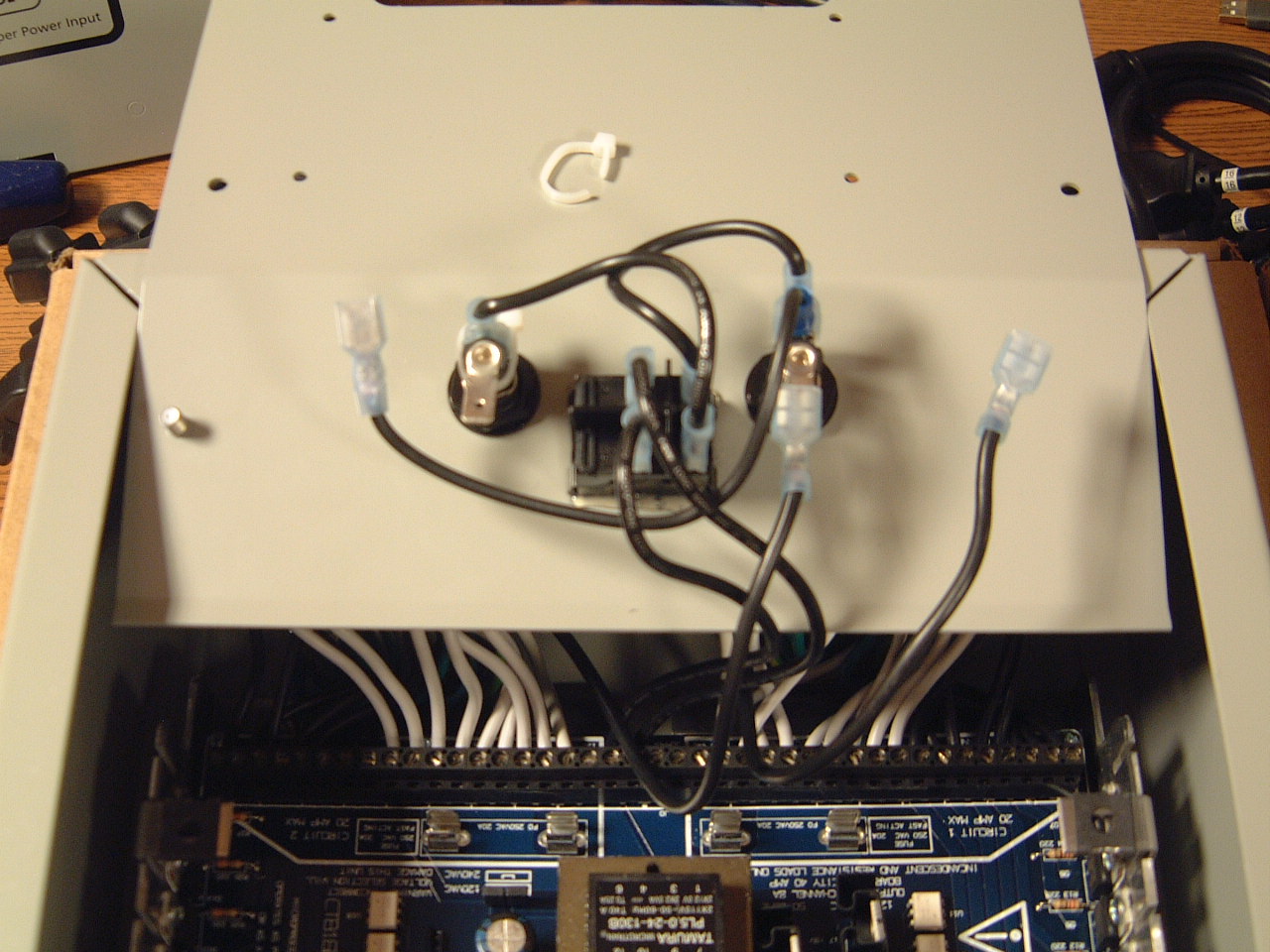

Reconnect the loose existing jumper end to the back of the piggyback terminal

Secure the connections at the piggyback terminal to the fuse holder using a tie wrap

Connect the remaining end of the new jumper to the input of the right fuse

The remaining changes take place inside the enclosure

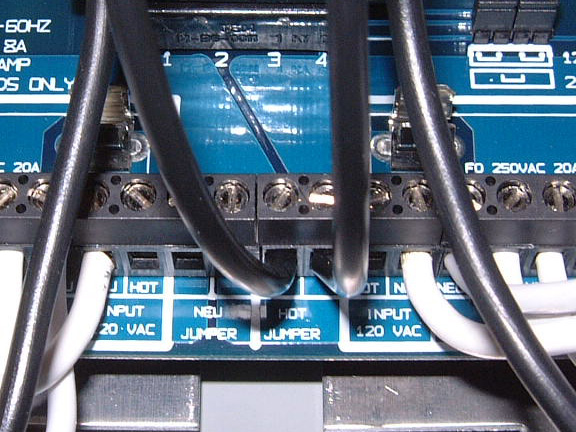

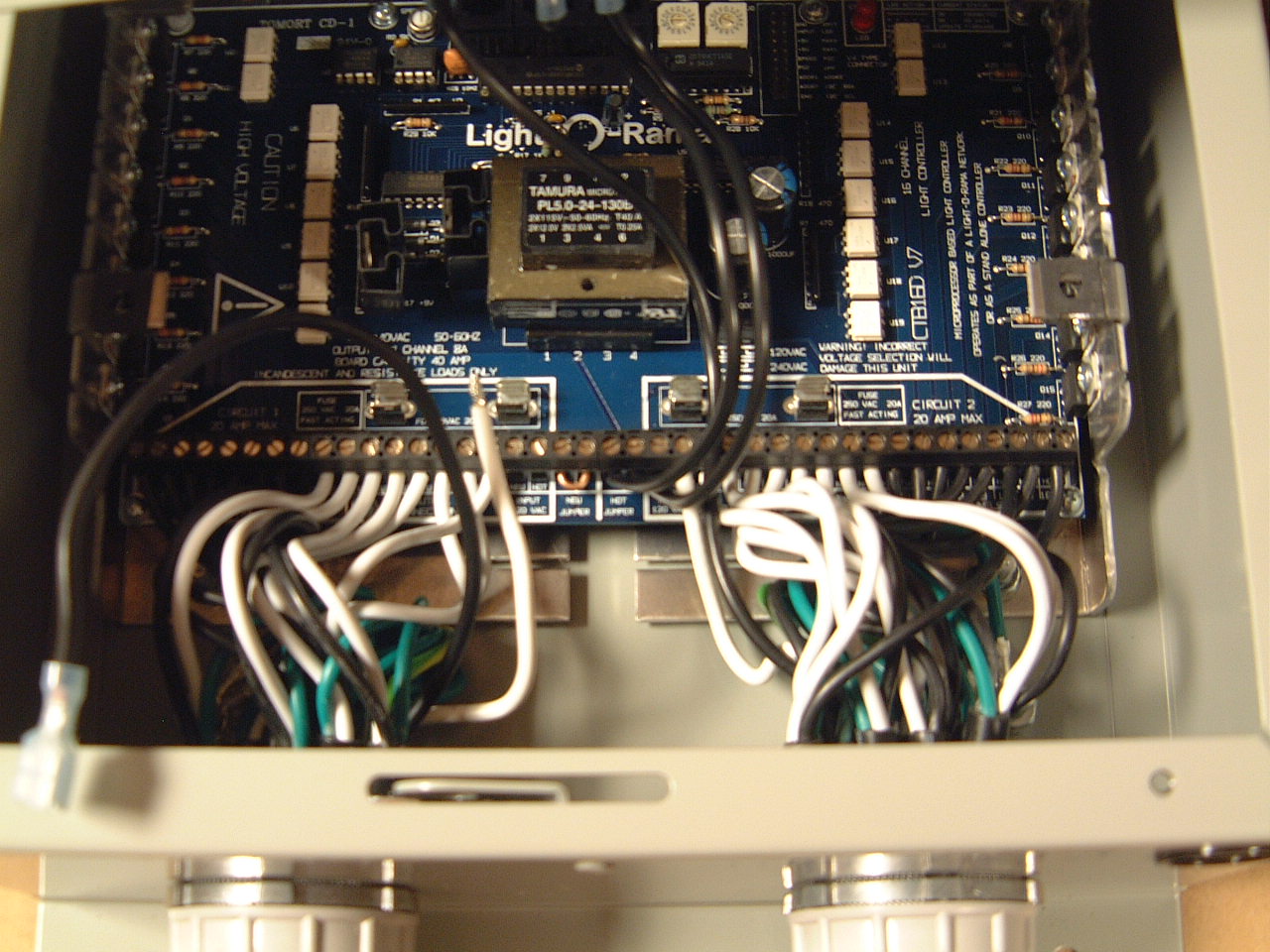

Disconnect the neutral input wire (white) from the left input cord from the board terminal

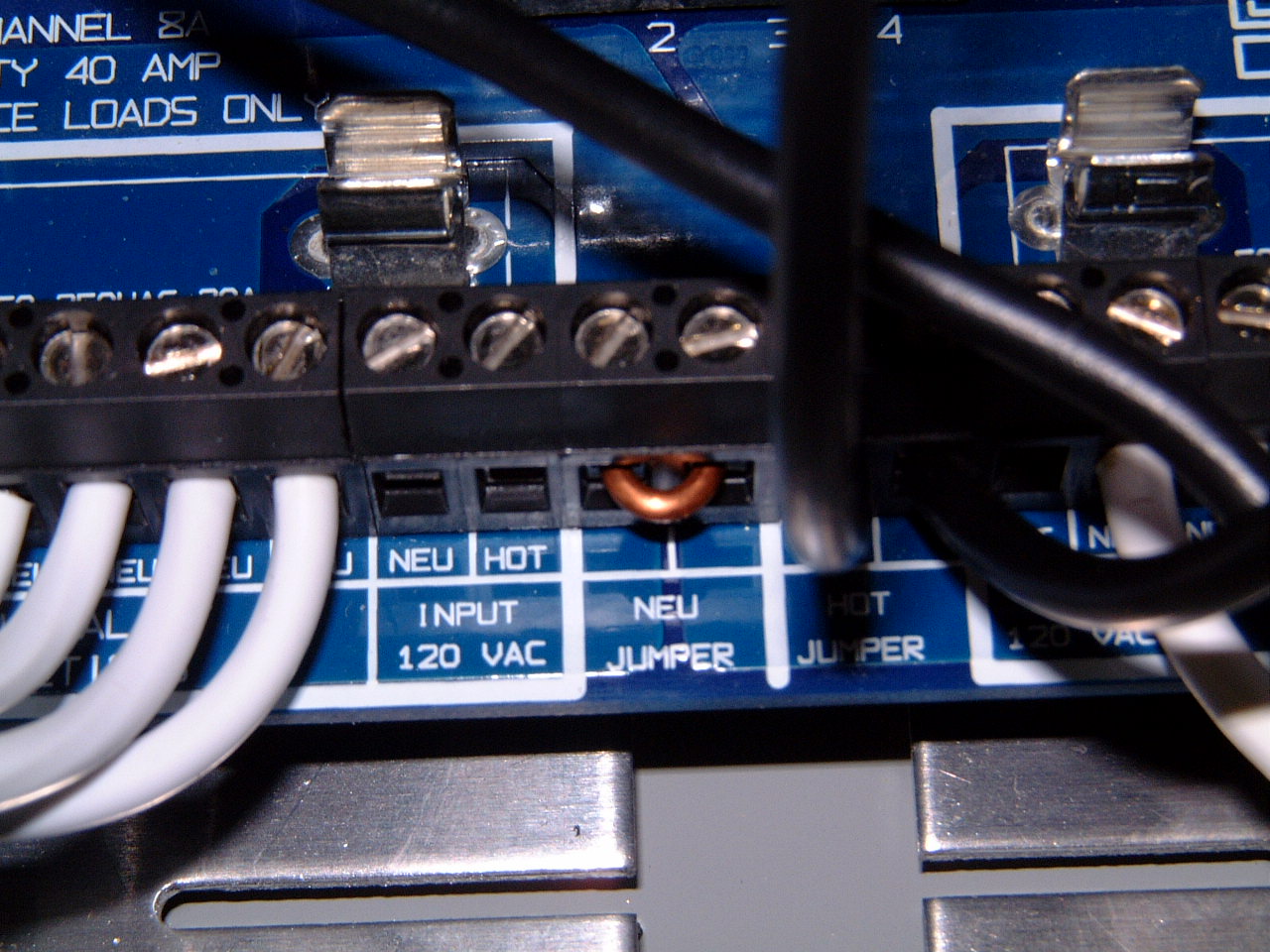

Install the 14 gauge solid wire between the two neutral jumpers terminals on the board

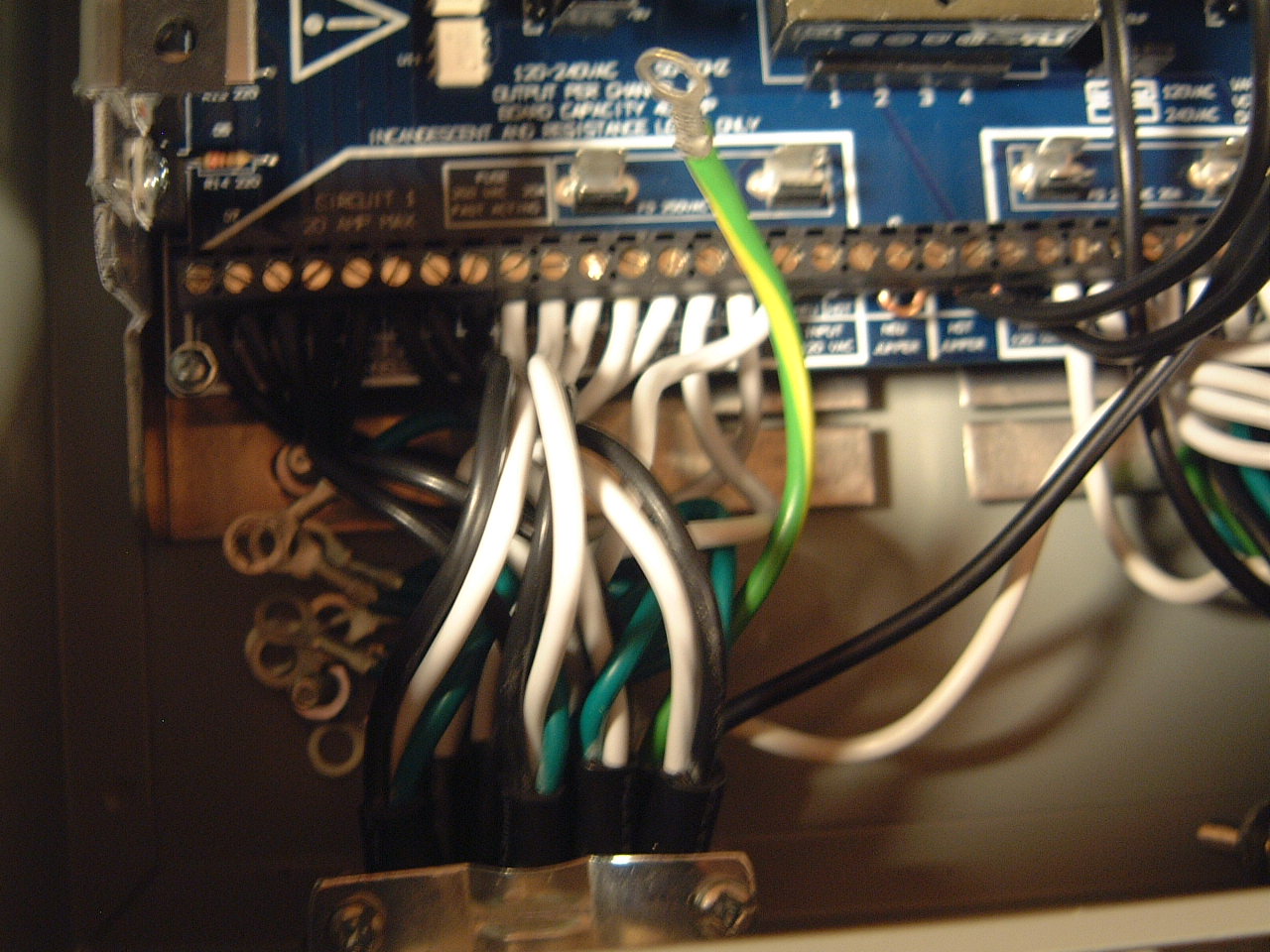

Disconnect the ground input wire (green) from the left input cord from the terminal lug on the enclosure

Remove the left input cord from the enclosure
